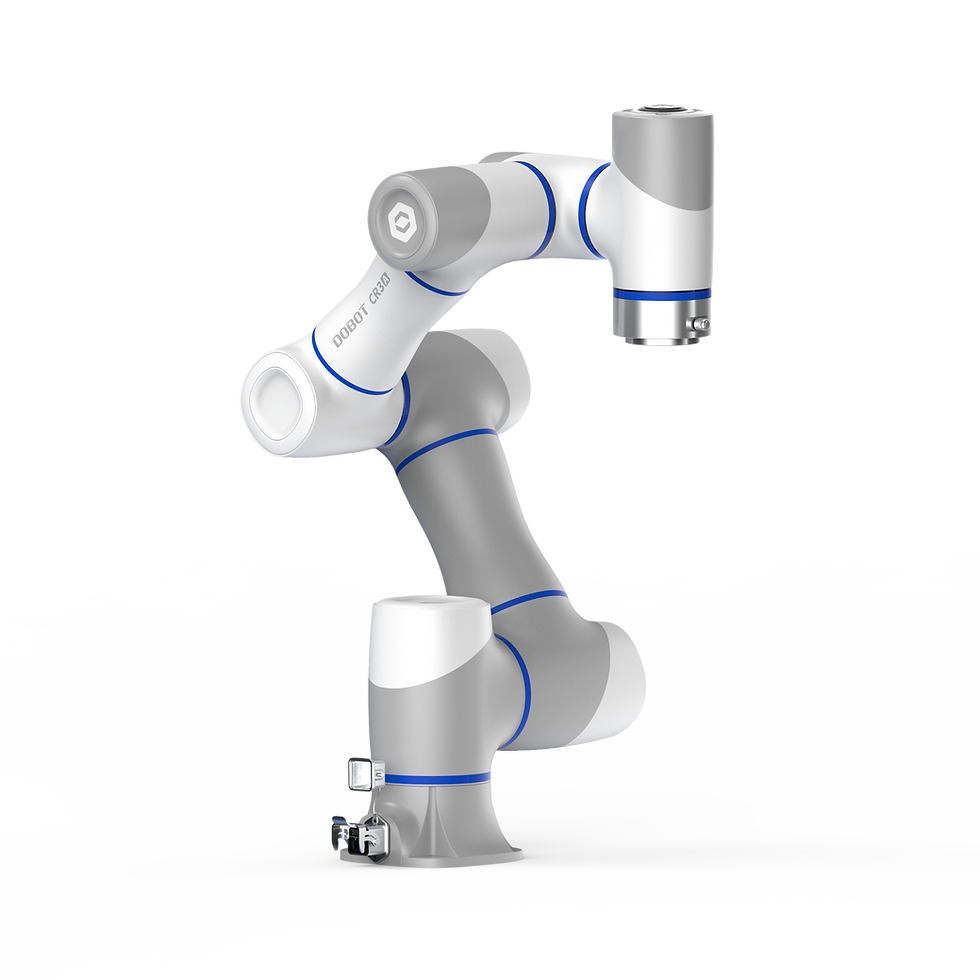

DOBOT CR3A – Compact Collaborative Robot 🤖

🔹 Product description:
DOBOT CR3A is a modern, compact collaborative robot (cobot), designed for process automation in industry, logistics, and research. Thanks to its lightweight design and high precision, it is suitable for many applications, such as assembly, inspection, handling components, and machine operation.



🔹 Key features:
✅ 3 kg payload – ideal for light assembly tasks and component handling
✅ 620 mm reach – provides a wide work area in a compact design
✅ Easy integration – intuitive control and quick setup
✅ Safety – built-in safety features enable working with people
✅ High precision – repeatability of ±0.02 mm
✅ Energy saving – low power consumption in operation
 Collaborative Robot

With the safety, performance, flexibility, and ease of use of the CR Series, the CR3A exceeds the payload limit of 3 kg, opening a wider range of applications for collaborative robots. With a working radius of 620 mm, the CR3A can meet the demands of heavy picking, packaging, palletizing, and welding in the automotive, appliance, logistics, and metal processing industries.

User-friendly design for faster implementation

The CR16A utilizes the industry's first dual-channel end effector that can directly interface with multiple end-effectors. It also features a visual status indicator at the base for intuitive recognition of the operating status.



The CR3A has a working radius of 620 mm and a maximum load capacity of 3 kg. Thanks to an advanced motion control algorithm, the CR3A operates more stably, and residual vibrations are reduced by 50% during quick emergency stops.



24 interface ports for greater flexibility

The CR3A supports Profinet and Ethernet/IP communication protocols and seamlessly connects to a PLC. It features 24 digital IO ports with industry-leading PNP and NPN switching support, making it easy to expand applications.



High Protection for Safer Collaboration

Both the robot body and control box achieve a high IP54 protection level. In the event of an overload, the robot will automatically sound an alarm. The CR3A is also equipped with innovative electromagnetic brake protection, which reduces the fall distance of the end tool in the event of a power failure.
