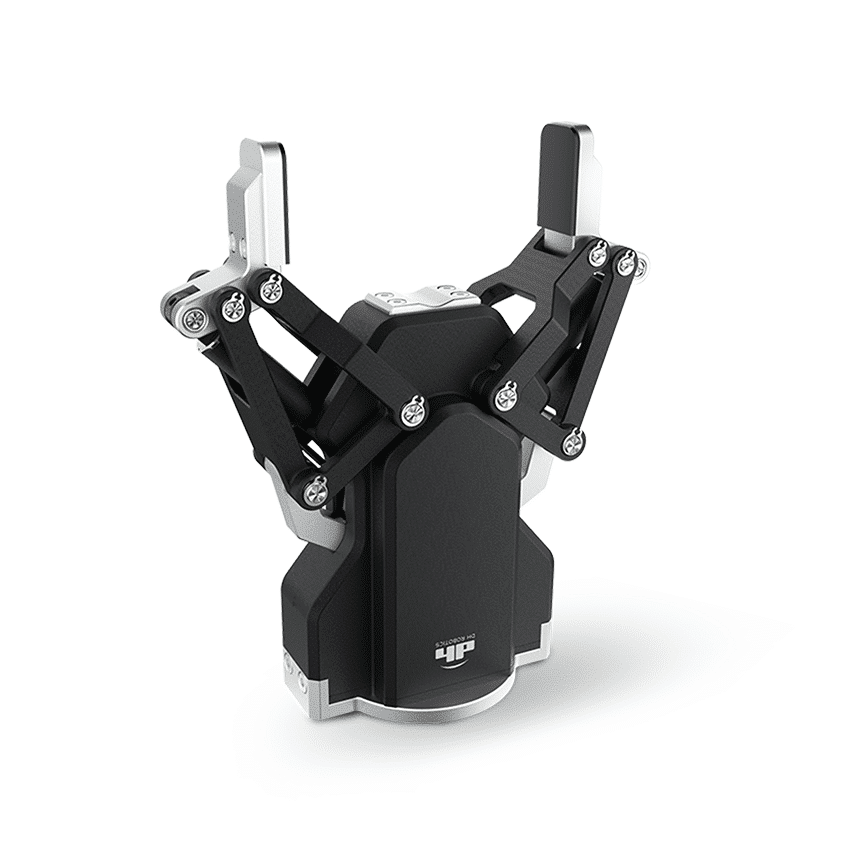

DH Robotics AG-95 Gripper – Product Description

DH Robotics AG-95 is an adaptive and versatile two-finger gripper that, thanks to its 95 mm stroke, can handle a wide range of object shapes and sizes. Its flexibility avoids the need to replace the gripper when changing the application or the object being manipulated.

The AG-95 gripper is designed specifically for collaborative applications (cobots) and offers ready-made plug-ins for integration with most popular cobot brands (including Universal Robots, OMRON, Hanwha).

Discover how this advanced yet affordable gripper can revolutionize your production processes!

Key Features:

Wide gripper stroke – up to 95 mm for greater flexibility
Versatility – supports many object shapes and sizes
Easy integration – ready Plugins for popular cobots ✅ Easy setup – intuitive operation for quick deployment ✅ Robust and compact design – reliability in harsh environments ✅



ℹ️ Have questions? Contact us! ✅



DH AG-95 gripper

SKU: 2100000416
€4,100.00Price
Excluding Sales Tax
Quantity
  • [tabledata]
    Load capacity | 3 kg
    Weight | 1 kg
    Dimensions | 184.6 × 162.3 × 53.6 mm
    Number of fingers | 2
    Operating mode | Electric
    Minimum operating temperature | 0 °C
    Maximum operating temperature | 40 °C
    Grip stroke | 95 mm
    Maximum gripping force | 160 N
    Closing time | 0.7 s
    Opening time | 0.7 s
    Supply voltage | 24 V
    Maximum current | 1.5 A
    Nominal current | 0.8 A
    Communication | Modbus RTU (RS485), Digital I/O, TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
    Mounting interface | ISO 9409-1-50-4-M6
    Protection class | IP54 (dust and splash resistance)
    [/tabledata]
